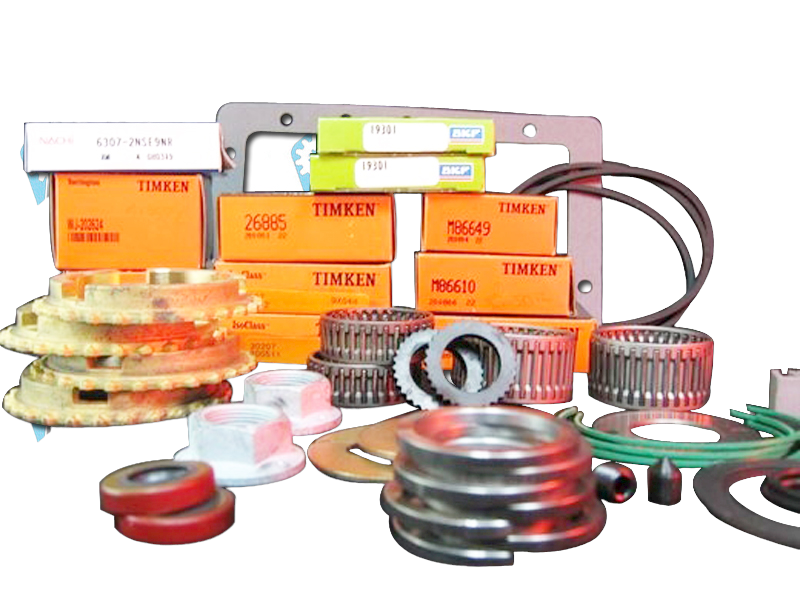

Advance Adapters Atlas 2 speed rebuild kit

• 1 30031 4 REAR OUTPUT BEARING
• 2 300355 CLUSTER THRUST WASHERS
• 2 300358 O-RING CLUSTER SHAFT
• 4 300370 BRAS SYNCRO RINGS
• 4 300373 SYNCRO DOR SPRINGSS
• 4 300383 SHIFT FORK PADS
• 2 300386 SET SCREW FOR SHIFT FORK
• 2 300387 SEAL FOR SHIFT RAIL
• 1 300393 FRONT OUTPUT THRUST WASHER
• 2 300474 RUBBER SEAL YOKE WASHER
• 2 300476 YOKE NUTS
• 3 300490 O-RING FOR INPUT AND OUTPUTS
• 6 300491 TAILHOUSING BEARING SHIMS
• 1 300499 FRONT INPUT SEAL
• 1 300500 FRONT INPUT SEAL
• 1 300509 FRONT OUTPUT THRUST WASHER
• 1 300510 FRONT INPUT BEARING
• 1 300511 FRONT OUTPUT BEARING
• 1 300512 FRONT OUTPUT BEARING
• 2 300513 REAR OUTPUT BEARING
• 1 300514 REAR OUTPUT BEARING
• 1 300515 OUTPUT SHAFT POCKET BEARING
• 2 300516 CLUSTER GEAR BEARINGS
• 2 300517 HIGH GEAR BEARINGS
• 2 300518 LOW SPEED GEAR BEARINGS
• 1 300919 DRAIN PLUG SEAL WASHER
• 1 301400 PAN GASKET
• 1 716453 SNAP RING
• 1 716455 SNAP RING
• 6 300105S FRONT HOUSING BEARING SHIMS

If you also need a new front output shaft PNAB1001 is the same as this kit but includes the new front output shaft.
